Development-of-GIS-Module

For development of GIS Module you must have this kind of Tools:
}  GPS Receiver:
 To take Coordinates of the school/Building area from Satellite
}  Google Earth:
  To Connect with World Map
}  ArcGIS Software:
   To edit Maps

First of All Start Google Earth

google earth start.png

Now add School/Building Coordinates taken from satellite through GPS receiver
school GPS points.png

When you add School/Building Coordinates taken from satellite Google Earth automatically search and show the school/Building area through the points we are taken through GPS receiver.
school area points.png

To design the Blocks, Right click on the Polygon folder, from left side menu then select layer add Polygon then draw Block area.

To design the Boundary wall, Right click on the Line folder, appears a menu, from menu select add Line then draw Boundary wall area.

Blocks and boundary wall are drawn, now it’s a time to save the Image as a type of *.Jpg or *.KML file. From menu file select save then select Save Image
save image  boundry.png

Appears a dialogue, on the dialogue window file name area, write file name and click button Save.
school name save.png

You saved your work now it’s a time to Minimize Google Earth, for this on the right side upper corner of the title bar click button Minimize.
minimize google earth.png

Now it’s a time to start ArcGis software without closing Google earth:
From the desktop of your PC Start ArcGIS and then from Dialogue window select Template Blank Map.
ArcGis Blank Map.png

Now we want To Add Data, click button (+) sign from the Toolbar of the ArcMap.
add data.png

Appears a dialogue window, From Dialogue Window Select folder (training Data) and file which type is *.Shp (District.shp) and then click Button Add.
add shp file.png
All Districts Map Loaded into the ArcMap.
district map.png
Now open Attribute Table:

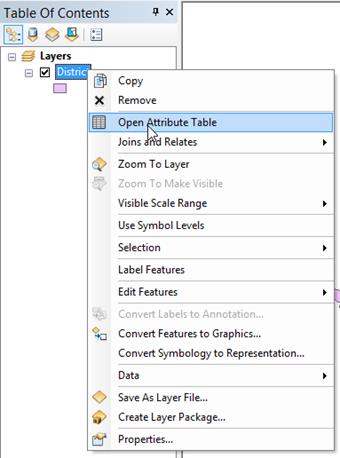

First of all from the left side of the Content table select Districts layer than right click, appears a context menu, from menu select open attribute table
district attribute table.png

Appears a Table, Select District Area from the Table then select show selected record.
show selected record.png

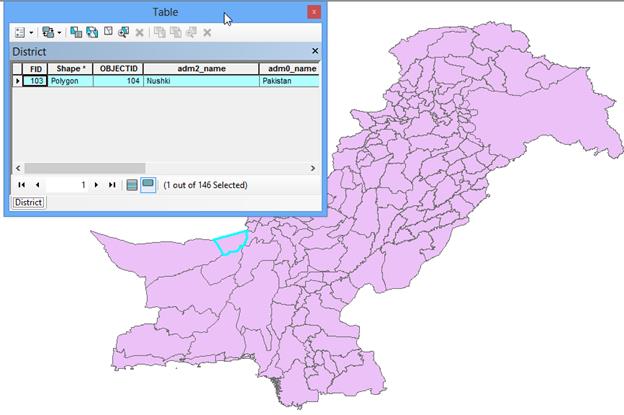

Look on the Map District Nushki, which is Selected in the Table and other tables hidden.
area selected.png
Now its time to Export data:
 Right click on the layer district then from the menu select Data then select Export data.
export area.png

Appears a dialogue window Export Data, From Export Data window select destination file named output.shp
export output save.png

Appears a dialogue window Saving data. From Saving data window select folder where you want to save *.Shp file  then click Button Save.
folder presntation.png

Appears a ArcMap window, From ArcMap window select yes to save exported data to the Layer.
export map to layer.png

Exported data added to the ArcMap as a layer in to Table of Contents.
export output on layer.png
Now we want to Add JPG Image (which was saved from Google earth) to the ArcMap as a Layer.
For this purpose click Add data (+) button from the toolbar.
Add data to layer.png

Appears a dialogue window Add Data. From dialogue window Add Data select folder then image file (which was saved from Google earth) HS- sahibzada-Nki.jpg, after that click button Add.
add jpg file.png

Image Added to the ArcMap into the Table of Content as a Layer.
HS sahibzada NKi on layer.png
Zoom Image Layer:
From the Table of Contents select layer Hs sahibzada Nki then click right button, appears a menu, from the menu select Zoom to layer.
zoom to layer.png
Jpg Image zoomed on the layer, but District map is looking very small on the top of image shown below in the pic.
Add control Points:
First of all from the toolbar click button Add control points then click on Image once after that right click on image, appears a Menu.
add control points.png

From the Menu Click Input X and Y coordinates, after that appears a window Enter coordinates.
input X and Y.png

Now we want to enter Geo-reference coordinates for X and Yopen Google Earth again.
enter coordinates.png

From Google Earth layer Sahibzada Nki select point P1 than right click on layer, appears a menu, from menu select properties.
1st point properties.png

Appears a dialogue window, from dialogue window select longitude decimal area than copy coordinates for X, you can select copy from menu or press Ctrl+C from keyboard.
copy Longitude menu.png

Again activate ArcMap and paste the longitude values for X and latitude values for Y coordinates.
ok enter coordinates.png

Coordinates X and Y are entered for point P1.
 As well as enter XY coordinates values for point P2P3 and P4.
Copy P2 coordinates from Google earth,2nd coordinates copy2.png
Paste P2 into ArcGIS X,Y coordinates
ok enter coordinates.png

After entering coordinates X, Y for points P1 and  P2, our map look like this. now Zoom the Map.
2nd point done.png

After zooming Map our two points look like this shown below. now if you want enter two other coordinates X, Y for points P3 and P4, enter it. which we were did for Points P1 and P2, otherwise its ok.
2 point showd place.png
Update Geo-referencing:
To update Geo-referencing from the toolbar select Georeferncing, appears a menu, from the menu click update Georeferencing.
update georeference.png

After updating the Georeferencing move the layer Hs sahibzad Nki.jpg at the top.


Data Layout:
To make a data layout, from the Menu Toolbar select menu view, appears menu view, then from menu click layout view.
make data layout.png
Now add new frame than Copy and Paste School area in Frame shown Below.
H/S Killi Sahibzada
 Nushki

 Our all work is done.
